Mold Design

A quality mold begins with quality design.

Our experienced designers are excellent for creating simple to complex designs and assemblies in 2D&3D formats based on latest project requirements.Meanwhile,also can provide below services for clients:

1. Suggested improvements on products design for better tooling if necessary

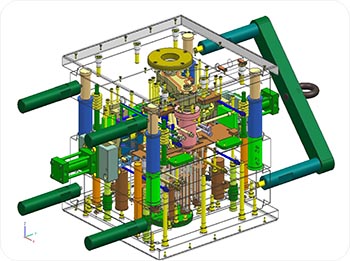

2.Computer aided mold design

3. Mold design accroding to different mold standards(DME,HASCO,LKM)

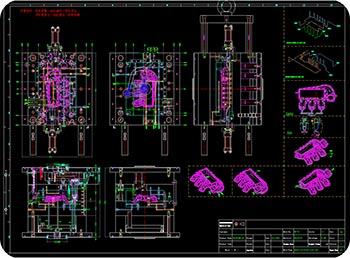

4. 2D&3D mold drawings

5.Existing data exchange formats:

6. 2D part drawings(DWG,DXF,PDF)

7. 3D Modeling(STEP,STL,IGES,X_T,CATPART)

Above are suitable for below kind molds:

1. Multi-cavities Molds with cold&hot runner system

2.Bi-Injection(2K) Mold with cold&hot runner system

3. Unscrewing Molds with hot runner system&oil cylinder

4.Insert Mold/overmold

5. Gas-assisted Mold

6. Rapid prototype molds

7. Casting mold
